Carbon fiber is mainly composed of carbon elements, with high temperature resistance, friction resistance, thermal conductivity and corrosion resistance and other characteristics.

It is of fiber shape, soft and it can be processed into a variety of fabrics.

It is high strength and modulus along the fiber axis direction because of its graphite microcrystalline structure along the fiber axis preferred orientation.

High specific strength and modulus are due to low density of Carbon fiber.

The main use of carbon fiber is as a reinforcement material, composited with resin, metal, ceramics and carbon, to manufacture advanced composite materials.

Carbon fiber cloth is also known as carbon fiber cloth, carbon fiber braided cloth, carbon fiber prepreg cloth, carbon fiber reinforced cloth, carbon fiber fabric, carbon fiber tape, carbon fiber sheet (prepreg cloth), etc. Carbon fiber reinforced fabric is a one-way carbon fiber reinforced product, usually made of 12K carbon fiber yarn.

Soft Carbon Fiber Filter Bags are made of such carbon fiber cloth with special high temperature resistant fiberglass wire withstand temperature up to 1000 °C.

Specifications:

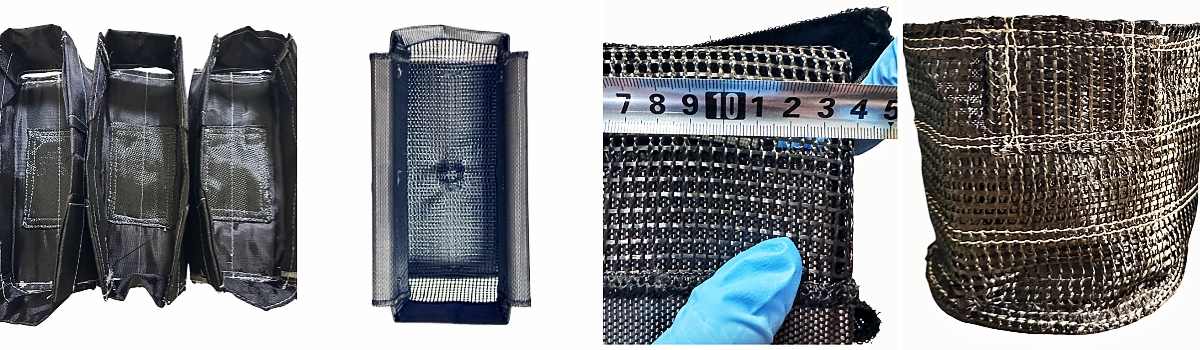

Softness of such bags Show

For soft carbon filter bags, we have produced rectangular, round and rigid types for our clients.

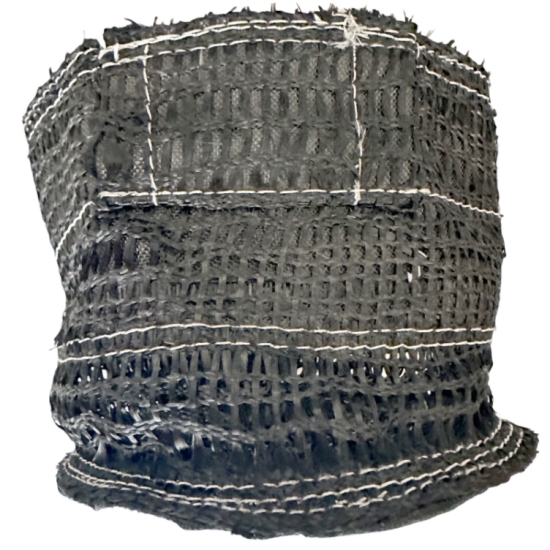

Round Soft Carbon Fiber Filter Bag Production

Main purposes of usage of filter bags:

1. The aluminum liquid is divided to two ends of ingot through the bags, this process will determines the temperature distribution around crystallizer device. And the metallographic structure of the cured aluminum alloy ingot will be affected by the temperature distribution.

2. The second purpose is to keep and leave the oxide in the bag, reduce the aluminium liquid flow and filter out all the large particles that mainly include alumina, chloride and titanium, boron, magnesium oxide and large resistant material shed.

Fiberglass Filtration Combo bag is one of process in contact with aluminum liquid in casting foundry, so it is quite important. It is the key to achieve the casting quality standards of aluminum and aluminum alloy flat ingot if bags and skimming ring are used together.

For TF Combo Bag, it is weaved by special high-twist & high-strength alkali-free fiberglass yarn, special post-treatment, coated with resin and carbonized by high temperature. its withstand temperature up to 800 °C.

Apply to filter large diameter aluminum ingot and billet, rectangular aluminium slab, and aluminum-alloy casting parts.

As a professional manufacturer of such filter combo bags, all materials, dimensions and mesh opening can be customized just according to your own samples and drawings.
