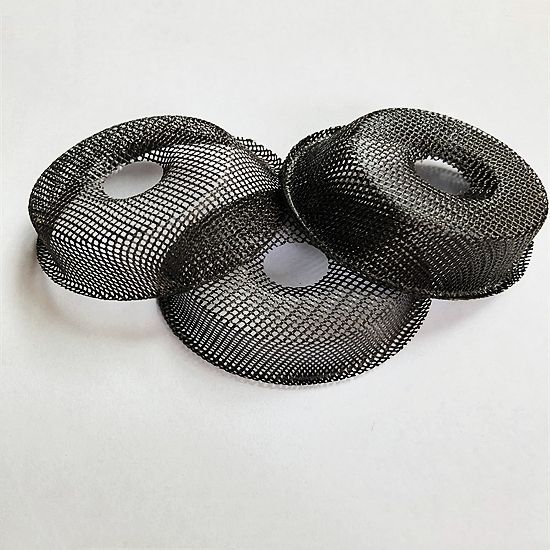

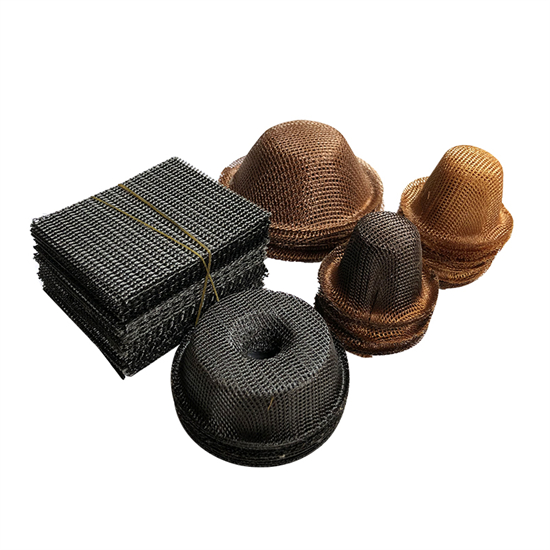

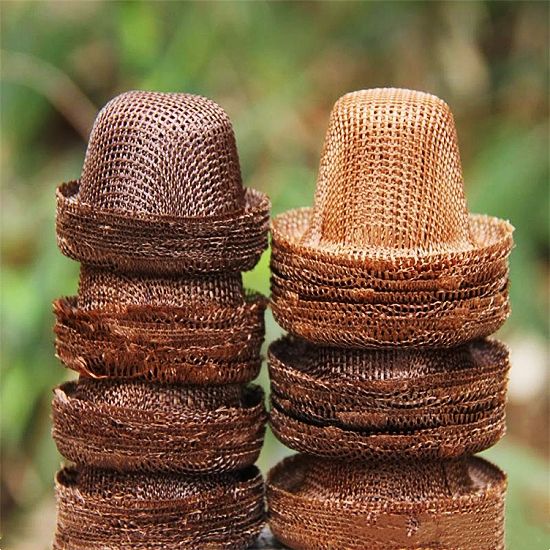

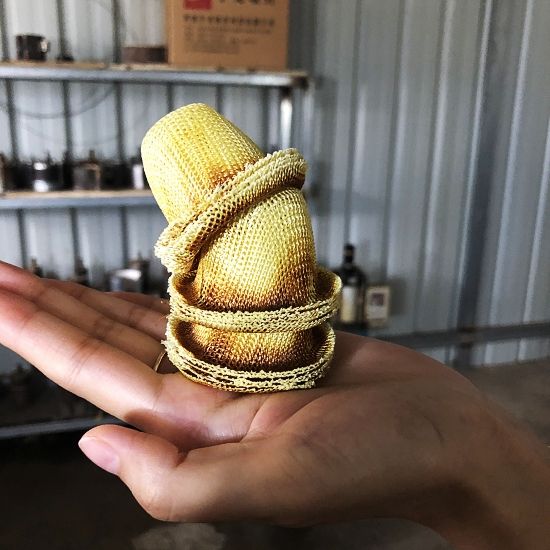

Fiberglass Filtration Mesh

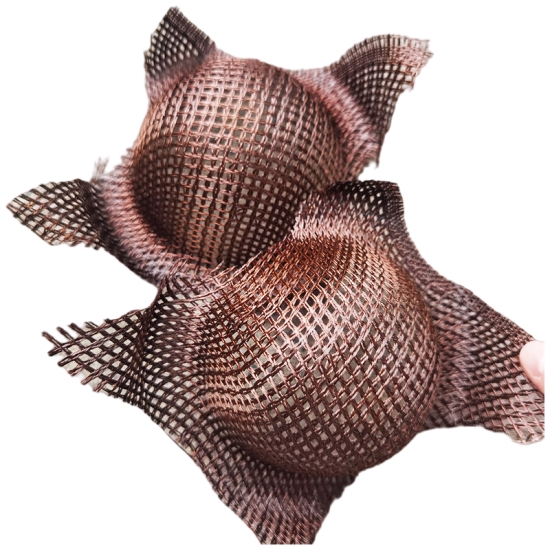

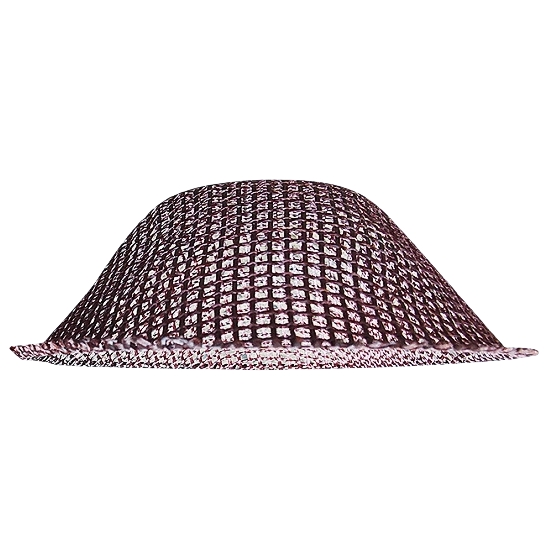

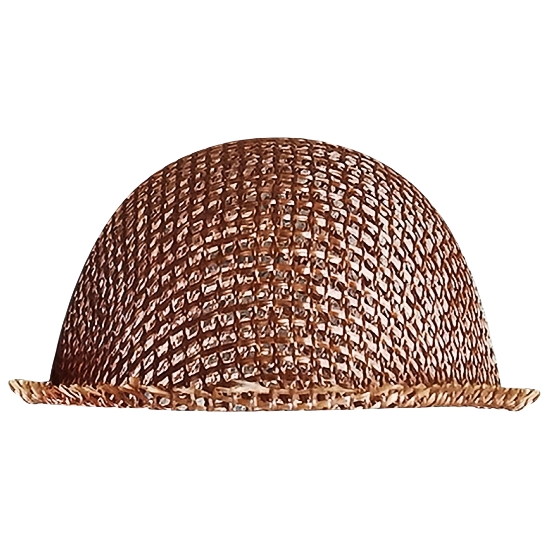

The cap-style high silica fiberglass casting filter mesh is produced by heat resistance fiber in specific techniques and after-treatment.
With features of lower cost, convenience to use, no impact on the element of metal casting, good efficacy on filter residue, heat resistance, flame resistance, this casting filter mesh is an ideal material for various liquid metals.
High silica fiberglass also can be used on the filtering chemical corrosion liquid and High-temperature gas.
Parameter

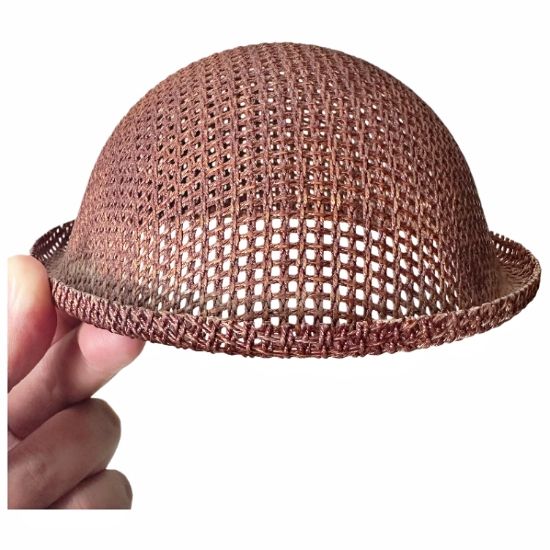

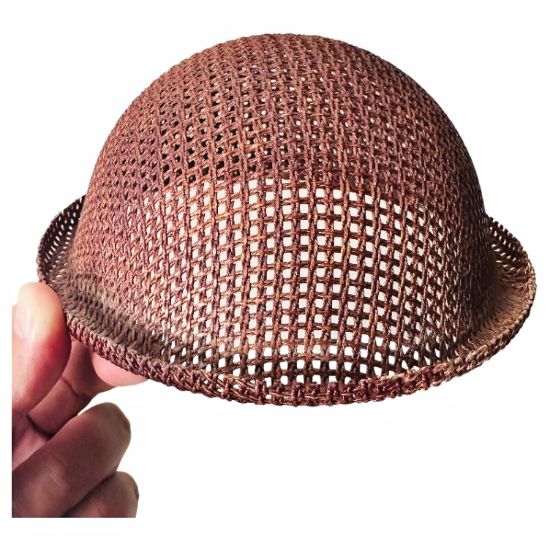

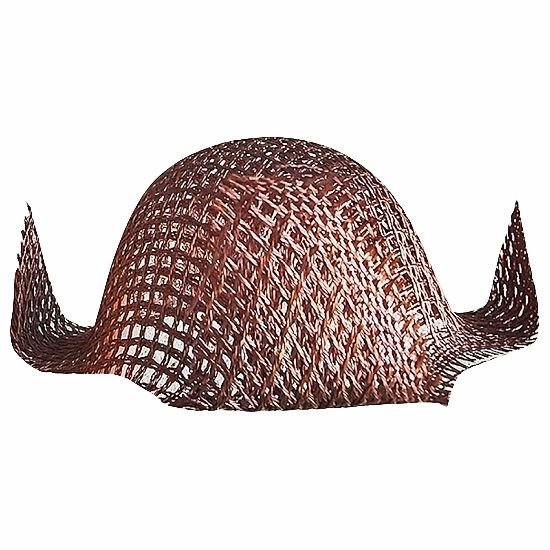

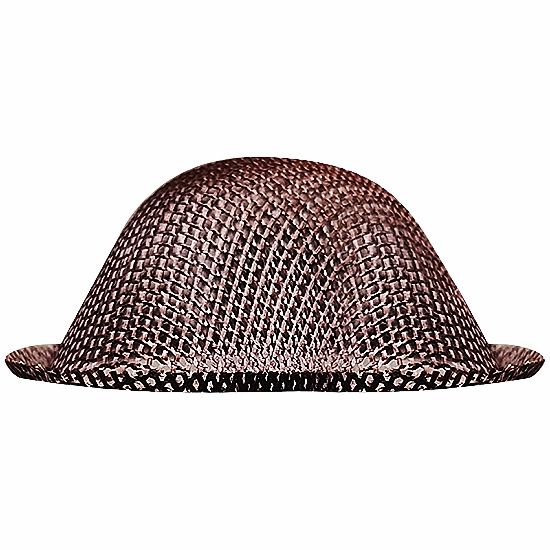

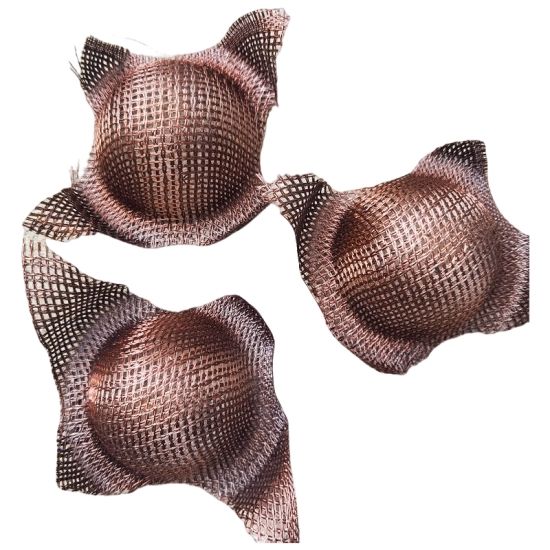

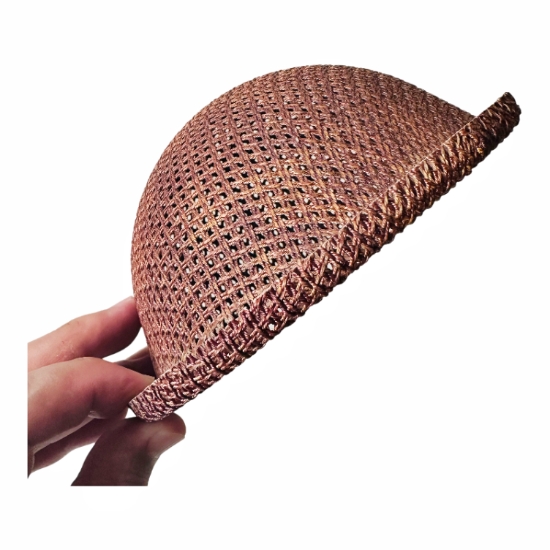

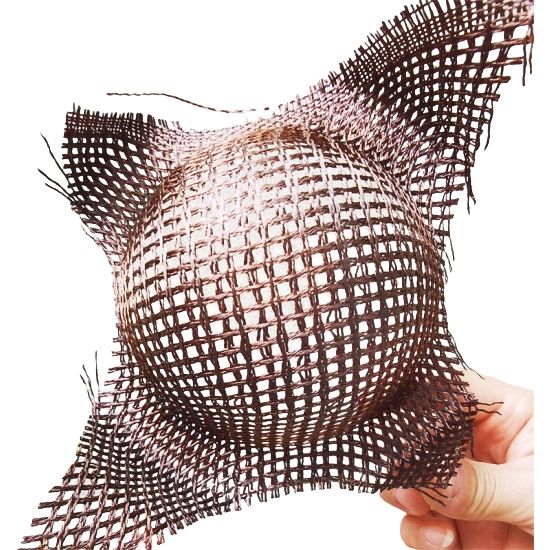

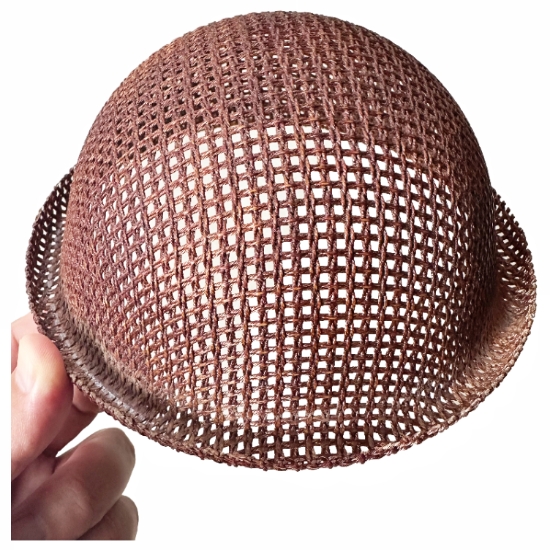

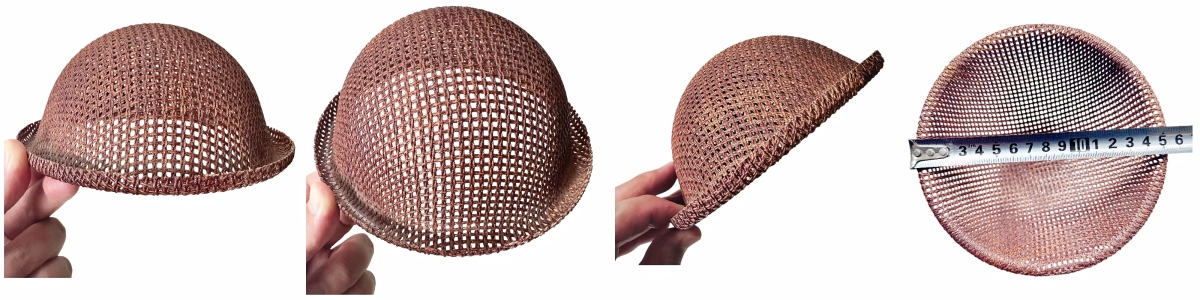

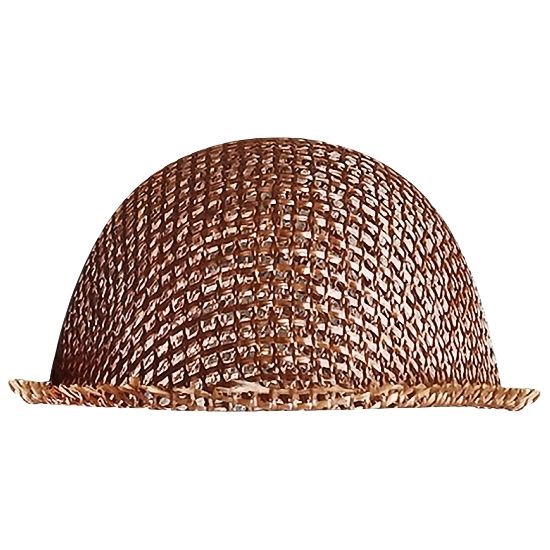

The Cangchen High Silica Fiberglass Filtration Cap is an essential component designed to improve the casting process by providing high-quality filtration for metal melts. This innovative filter cap simplifies casting difficulties, reduces manufacturing costs, and improves the overall qualification rate of the final product. It serves as an ideal filter material in a variety of industrial applications, enhancing castings' internal and external quality.
A cap filter mesh, also known as a mesh filter cap, is a filtration component made from various layers of materials like stainless steel. This mesh effectively blocks macro inclusions and slightly adsorbs fine particles, ensuring that only the desired fluid or metal melt enters the cavity. The primary function of the High Silica Fiberglass Filtration Cap is to provide exceptional precision and durability throughout the filtration process.
The High Silica Fiberglass Filtration Cap offers numerous benefits that set it apart from other filtration solutions:
Eliminates Pores, Slag Holes & Blisters: By using advanced filtration technology, the filtration cap improves both the internal and external quality of castings.
Improved Hardness & Bending Strength: It enhances the surface hardness of the casting and provides better bending strength.
Reduces Graphite Size: The mesh helps in reducing the size of graphite particles within the casting, leading to more efficient processing.
Increased Processing Efficiency: The High Silica Fiberglass Filtration Cap aids in smoother casting operations, reducing potential defects.
The cap-style high silica fiberglass casting filter mesh is produced by heat resistance fiber in specific techniques and after-treatment. With features of lower cost, convenience to use, no impact on the element of metal casting, good efficacy on filter residue, heat resistance, flame resistance, this casting filter mesh is an ideal material for various liquid metals. High silica fiberglass also can be used on the filtering chemical corrosion liquid and High-temperature gas.

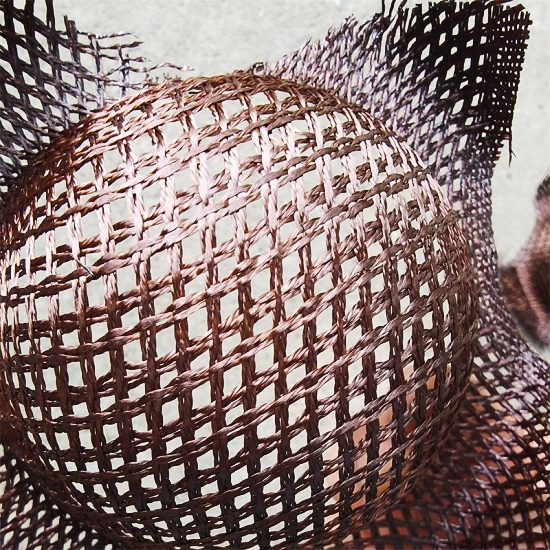

High silica fiberglass mesh filters for molten aluminum filtration are specially designed and woven for the diffusion and filtration of aluminum. High twisted yarns are used to control strand diameters and resist flattening or distortion under pressure from contact with molten metal. The integrity of the weave pattern is maintained by the use of phenolic resin, and by the use of leno construction in high density.
Technical Sheet Data:
| Type | High Silica Fiberglass Filter Mesh For Steel Iron And Copper | |
| Work Temperature | ≤1620℃ | |
| Softening Temperature | 1700℃ | |
| Continuous Working Hours | ＜10 Min.（1400-1450℃） | |
| ＜4 Min.（1450-1560℃） | ||
| ＜15 Seconds.（1560-1620℃） | ||
| Gas Emit | ≤60cm 3/g | |
| Thickness | 1.5mm | |
| Weight | 520-580 g/m2 | |
| Weave Pattern | Mock Leno | |
| Hole Size | 1.5*1.5/2.0*2.0/2.5*2.5mm | |
| Mesh Opening Chosen | White Iron | 1.5mm |
| Gray Iron(Pour weight≤100kgs ) | 1.5mm | |
| Gray Iron(Pour weight≥100kgs ) | 2.0mm | |
| Malleable Iron | 1.5mm | |
| Compacted Graphite Iron | 1.5mm & 2.0mm | |
| Ductile Iron(Pour weight ≤ 100kg) | 2.0mm | |
| Ductile Iron(Pour weight ≥ 100kg) | 2.5mm | |
| Carbon Steel | 1.5mm | |
| Stainless Steel | 1.5mm | |
| Brass | 1.5mm & 2.0mm | |
| Bronze | 1.5mm & 2.0mm | |
| Certificate | MSDS | |
| ISO9001:2015 | ||
Cap Filter Mesh Features and Functions:
● Carbonized by High Temperature.
● Coated with special resin.
● Smokeless & Odorless & Flameless.

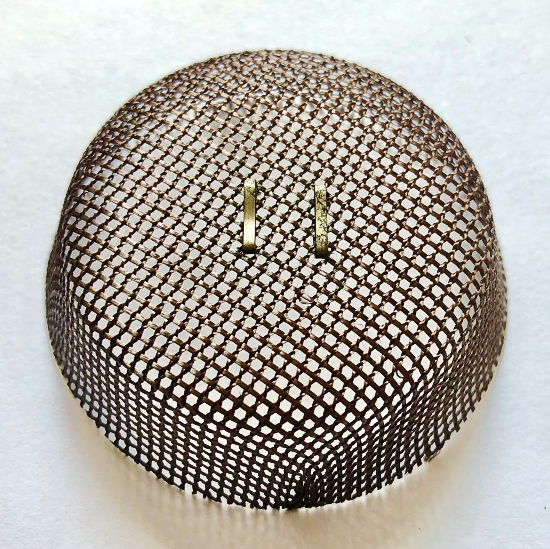

● With one or two staple or not, up to clients' need.
● Effectively remove impurities, reduce turbulence and eliminate air bubbles from molten aluminium.
● Improving the quality of castings and reducing costs.
● The aluminium filtered by this mesh can be recycled again.
● It is environment-friendly products.
● All shapes can be customized according to clients' requirements.
High Flow with Low Resistance: The High Silica Fiberglass Filtration Cap allows for substantial fluid or gas flow with minimal pressure drop, making the system more efficient.
Exceptional Durability: It offers excellent resistance to abrasion, corrosion, high temperatures, and chemical reactions, ensuring a prolonged service life even under harsh conditions.
Ease of Maintenance: The robust and durable design permits easy cleaning and replacement, helping reduce downtime and maintenance costs.
Customization: The filtration accuracy, size, and shape of the High Silica Fiberglass Filtration Cap can be tailored to meet specific industry needs, providing versatility for various applications.
In conclusion, the High Silica Fiberglass Filtration Cap offers essential filtration solutions that enhance system efficiency and protect critical equipment. Whether utilized in industrial, chemical, automotive, or aerospace applications, its customizable nature and superior performance make it a formidable choice. Trust the High Silica Fiberglass Filtration Cap for reliable, long-lasting filtration solutions that improve quality and performance in every industry.
The cap-style is woven with special high-twist & high-strength alkali-free fiberglass and special post-treatment. The maximum temperature resistance can reach 1400 ℃-1700 ℃.
It is widely used in automobile and motorcycle wheels, cylinder pistons, aluminum rods, aluminum materials, aluminum ingots, aluminum plates and precision casting of all types of aluminum alloy casting.
Cangchen is a professional foundry filtration products manufacturer who focuses on production, sales, service and solutions. If you want to know more about our Cap Filter Mesh price, we are online 24 hours a day and welcome your consultation.
Application:
1. The filter screen can effectively remove the physical impurities in the collection and filtration system.
2. Protect the pipeline equipment, and improve the performance of the filter medium.
3. It is suitable for various fuel filters, liquid filtration, and water treatment equipment.
4. Filter mesh is used in mechanical air ventilation,it can maintain the mechanical cleaning and prevent sundries from into the cavity.
5. Filter through the screen, so as to avoid sundries, in order to increase the service life of the machine.
6. Filter mesh is suitable for distillation, absorption, evaporation and filtration in petroleum, oil refining, chemical, light industry, medicine, metallurgy, machinery and other industries.For example,Filtration of molten aluminium.

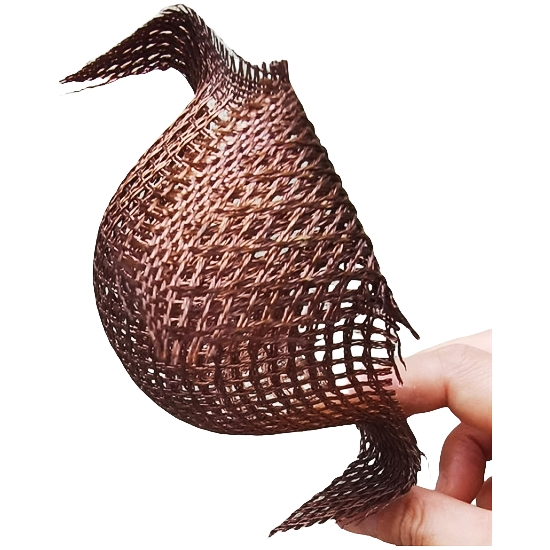

High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper (Thick Type)
High Silica Fiberglass Fabric Filter Mesh For Steel Iron And Copper (Thick Type)
Smokeless Odorless Fiberglass Casting Filter Mesh For Aluminum
Smokeless Odorless and Flameless Fiberglass Casting Filter Mesh For Aluminum liquid Filtration.
