Fiberglass Filtration Mesh

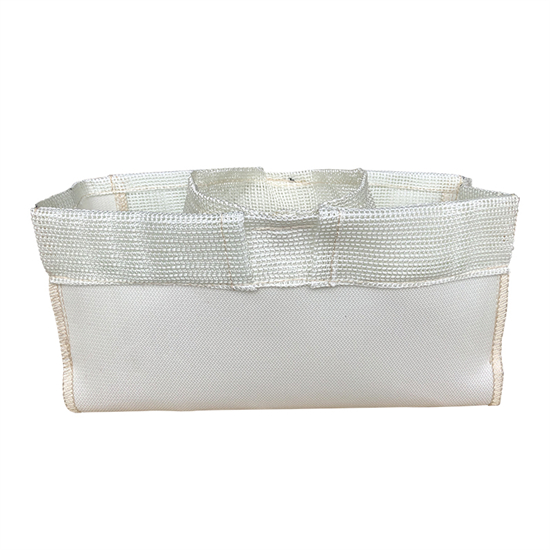

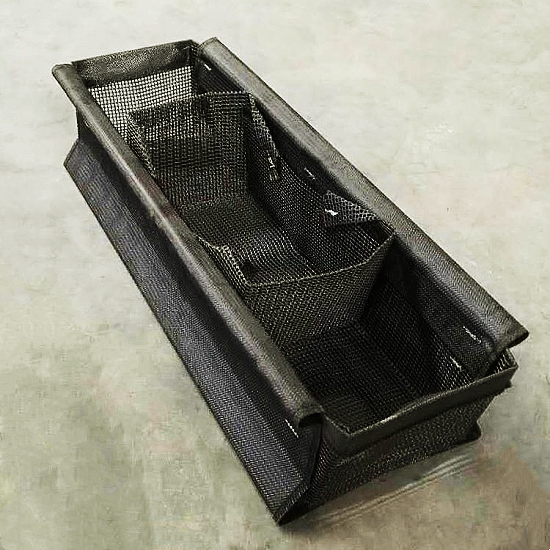

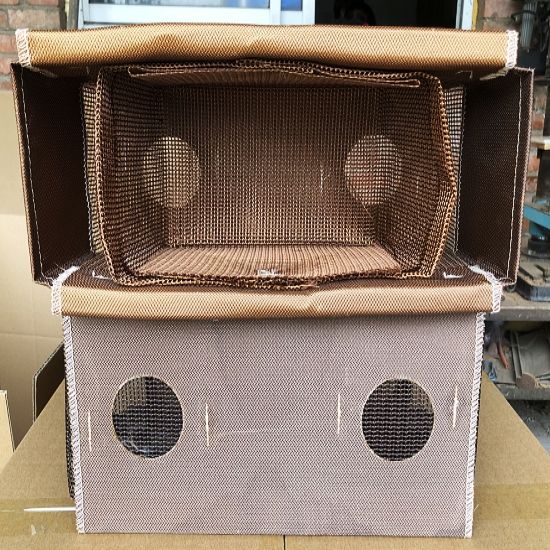

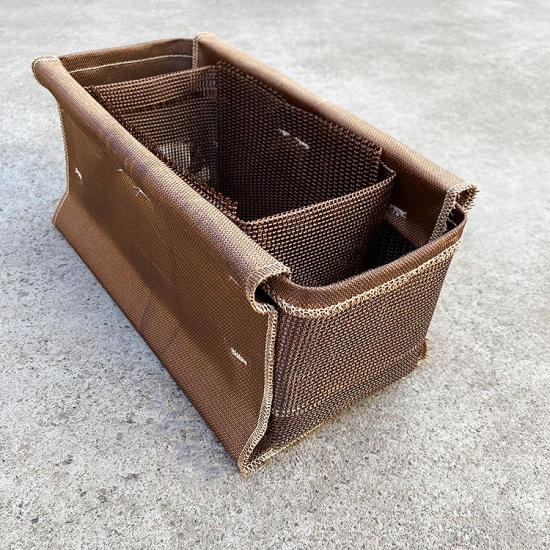

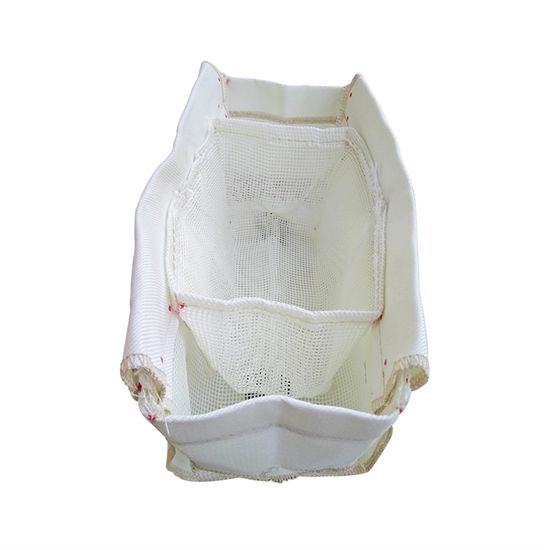

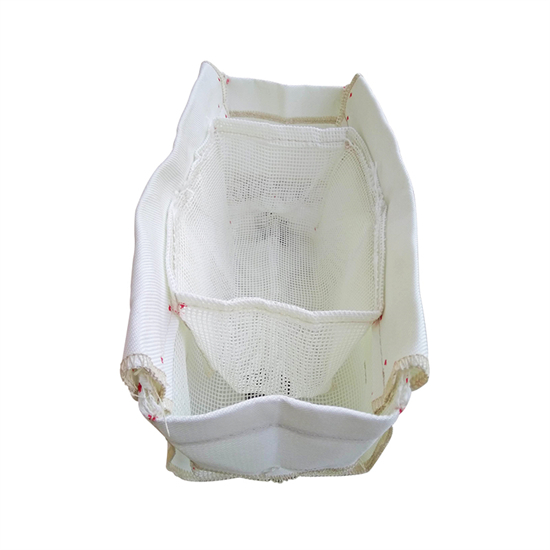

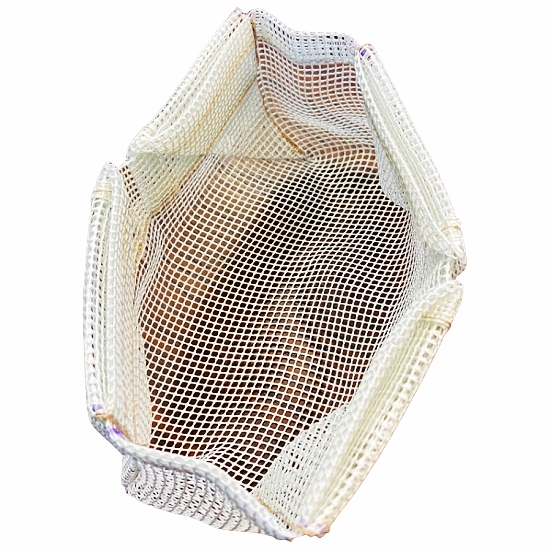

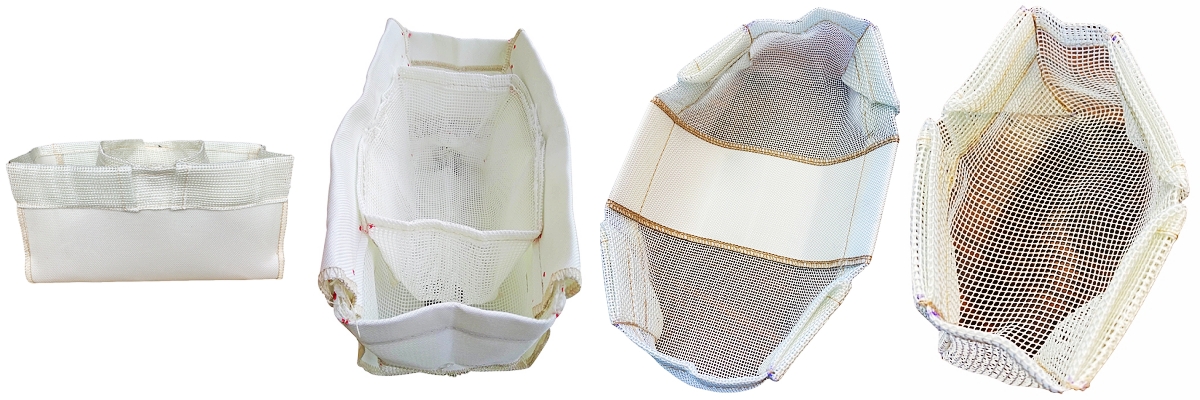

Foundry Filtration Bag Pouch, also named TF Combo Bag, which is weaved through special process, its withstand temperature up to 1000 °C.

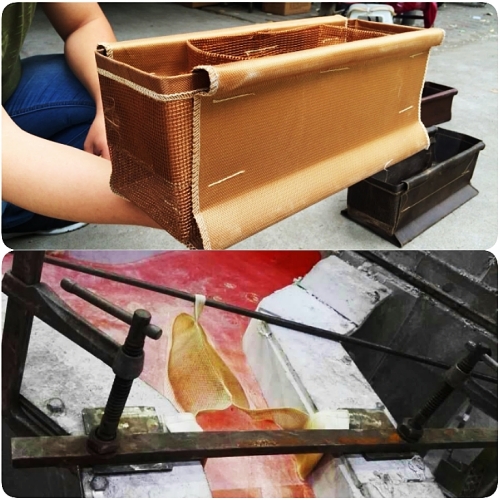

Apply to filter and evenly distribute molten aluminum in molds.
Apply to filter large diameter aluminum ingot and billet, rectangular aluminium slab, and aluminum-alloy casting parts.
1. New environmental protection material, does not burn during whole use process , no harm to human body.
2. Advanced production equipment, warp and weft standard for base cloth, high temperature resistant coating mesh uniform, the finished product is exquisitely made without burrs.
3. Both sides of the bag adopt square hole fixing device technology, more convenient operation and improve the working rate.
Parameter
The Molten Aluminium Metal Foundry Filtration Bag from CangChen is an essential tool in the aluminum casting industry, offering unparalleled performance in filtering molten aluminum to ensure the production of high-quality castings. With advanced material engineering, including fiberglass mesh and refractory resins, this filtration solution is designed for durability, efficiency, and environmental safety.
The Molten Aluminium Metal Foundry Filtration Bag boasts several advanced features that set it apart from conventional filtration methods:
High Filtration Efficiency: Effectively removes impurities, dross, and oxides from molten aluminum.
Durable Material: Made from high-strength alkali-free fiberglass yarn coated with phenolic resin for excellent temperature resistance.
Environmental Safety: Utilizes eco-friendly materials, ensuring no harm during the entire usage process.
User-Friendly Design: Equipped with square hole fixing technology for easy installation and improved operation efficiency.

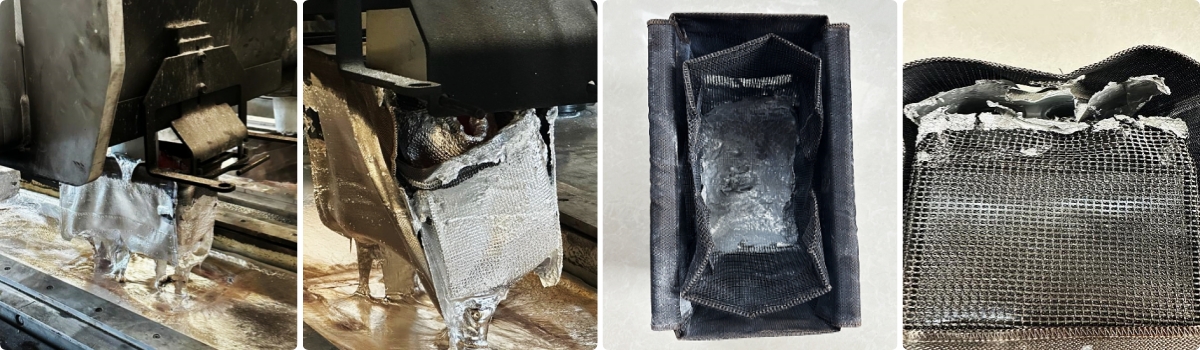

Filtering Molten Aluminum:
Ideal for filtering large-diameter aluminum ingots, billets, and rectangular slabs.
Helps evenly distribute molten aluminum in molds, reducing turbulence and enhancing temperature consistency.
Foundry Filtration Uses:
Compatible with sand casting, permanent molds, shell molds, draw molds, and investment casting.
Effectively removes air bubbles, oxides, and other impurities to improve casting quality.
| Type | Fiberglass Filtration & Shunt Combo Bag For Aluminum |
| Work Temperature | ≤1000℃ |
| Melting Point | 1100℃ |
| Color | White, Brown and Yellow |
| Normal Dimensions | 13" X 5" X 6", 18" X 5" X 6", 18" X 10" X 6" |
| Mesh Openning | 5mesh, 7mesh, 8mesh, 9mesh, 10mesh, 12mesh, 14mesh, 16mesh, 18mesh, 20mesh, 25mesh, and special specifications can be customized. |
| Application | Filtration & Shunt For All Aluminium and aluminium alloy products. |
| Work Time: | 4hours when flow ≤10 kg/min. |
| 1.5hours when flow ≤120 kg/min. | |
| Tensile Strength | 8KGS |
| Filter fineness | 5-50(μm) |
| Filter area | 100(m2) |
| OEM | Logo, Size and Shape of fiberglass filter bag, according to customer's requirement, and also drawing or samples. |
| Certificate | MSDS |
| ISO9001:2015 |
Enhanced Casting Quality:
Reduces non-metallic inclusions, improving the mechanical properties of aluminum castings.
Increases surface hardness and bending strength for superior end products.
Cost Efficiency:
Prevents contamination, allowing remelting of aluminum liquid to reduce material costs.
Increases the yield of aluminum castings, minimizing waste and production errors.
High-Temperature Resistance:
Withstands liquid temperatures of up to 700°C and maintains functionality for extended durations.
Offers continuous operation for varying flow rates, ensuring reliable performance during high-demand casting processes.
Our Fiberglass Foundry Filtration options, including the Molten Aluminium Metal Foundry Filtration Bag, use advanced materials and design innovations:
Non-stick aluminum properties prevent slagging and peeling, ensuring consistent quality.
Excellent resistance to acids and alkalis for versatile use across different foundry environments.
Ideal for improving the hardness, uniformity, and mechanical strength of aluminum castings.
With its superior performance, durability, and cost-effectiveness, the Molten Aluminium Metal Foundry Filtration Bag remains the top choice for aluminum casting applications worldwide. Explore our range of Foundry Filtration Basket, Foundry Filtration Pouch, and Fiberglass Foundry Filtration solutions to optimize your foundry processes and achieve exceptional results. In addition to fiberglass filters, CangChen also offers high quality foam ceramic filters. Contact CangChen to experience our unrivaled products!
All dimensions can be customized according to your drawing, pictures and samples!
Application:
The shunt of molten metal.
All Aluminium and aluminium alloy products.
Apply to filter large diameter aluminum ingot and billet, rectangular aluminium slab, and aluminum-alloy casting parts.
