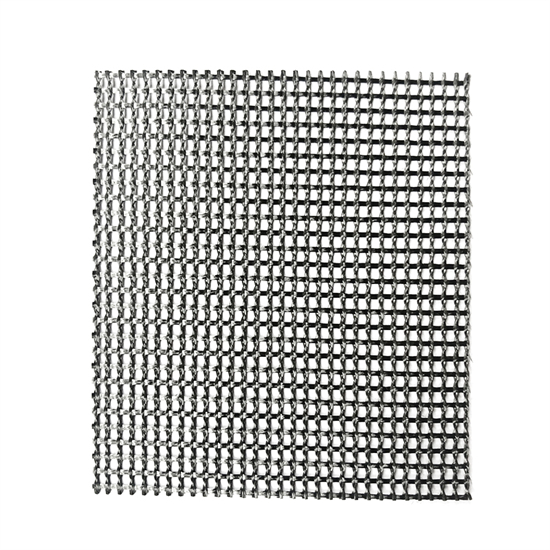

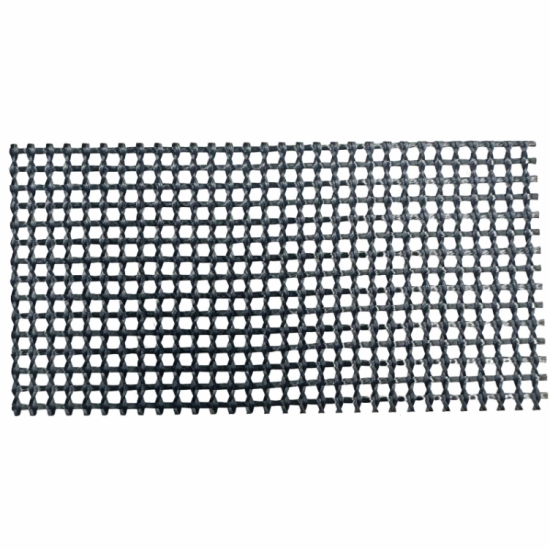

Fiberglass Filtration Mesh
Fiberglass Fabric Filter Cloth is specially developed and used for filtration, turbulence reduction and flow distribution improvement of non-ferrous alloys, especially molten aluminium.
There are kinds of product series with advanced technology and stable quality.
New patented product "Smokeless & Odorless & Flameless" Fiberglass Filtration Mesh will gradually replaces similar products to filter aluminum liquid.
Compared with other types of filters, fiberglass casting filters are cheap, easy to use, do not change the metal composition of the casting, have a good slag filtering effect and have low gas generation.
Parameter
Fiberglass Fabric Filtration Mesh is woven with special high-twist & high-strength alkali-free fiberglass yarn, coated with a special resin, carbonized by high temperature and special post-treatment.
The maximum temperature resistance can reach 900 ℃.
New patented product "Smokeless & Odorless & Flameless filter mesh"
● Effectively remove impurities,
● Reduce turbulence and eliminate air bubbles, thereby improving the quality of castings and reducing costs.
● Does not pollute the aluminum liquid and affect the chemical properties of the metal.
● Aluminum waste containing the filter mesh, aluminum liquid from the sprue and the riser can be directly returned to the furnace for remelting, greatly reducing costs.
We are offering our clients supreme quality fiberglass fabric filtration mesh that is cloth woven with fiberglass yarn. Widely used in automobile and motorcycle wheels, cylinder pistons, aluminum rods, aluminum materials, aluminum ingots, aluminum plates and precision casting of all types of aluminum alloy casting. Further, this suitable filtration medium has excellent dimensional stability, temperature resistance and the lowest elongation. We can also customize this product as per the requirements of clients.
If you are interested in our products or have any questions, please consult us.
| Type | Fiberglass Filter Cloth in roll for aluminum filtration | |
| Yarn type | E-glass fiberglass | |
| Weave type | Leno & plain | |
| Width/roll | 0.9m/1.0m ± 1cm and customized | |
| Length/roll | 100m/150m/200m and customized | |
| Thickness | 0.35-0.6mm | |
| Weight | 150-350g/m2 | |
| Mesh opening | 0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm and customized | |
| Coating | No Coating | White color and soft fabric |
| Coating with a special resin | Brown color and hard fabric | |
| Work Temperature | 700-900℃ | |
| Softening Temperature | 900℃ | |
| Continuous Working Hours | ＜20Min.（700-800℃） | |
| Gas Emit | ≤30cm 3/g | |
| Loss on ignition | ≤3% | |
| SiO2 | 58%-65% | |
| Certificate | SDS | |
| ISO9001:2015 | ||

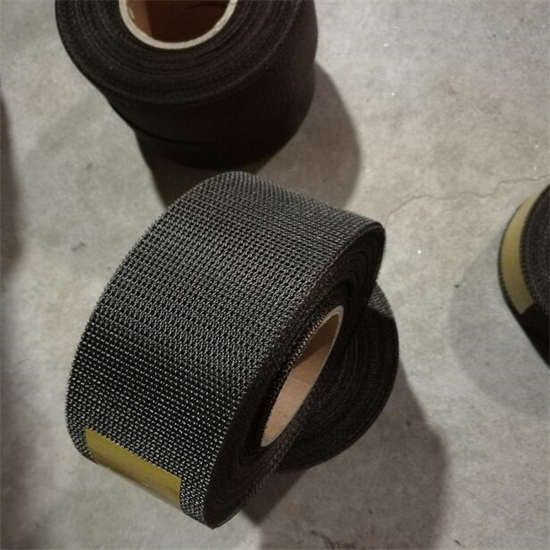

● Filter cloth in roll (white & brown, without/with coating) : It can be fixed in the aluminum liquid flow tank, used for aluminum ingot, aluminum rod, aluminum strip and other continuous casting workshop to purify aluminum liquid.

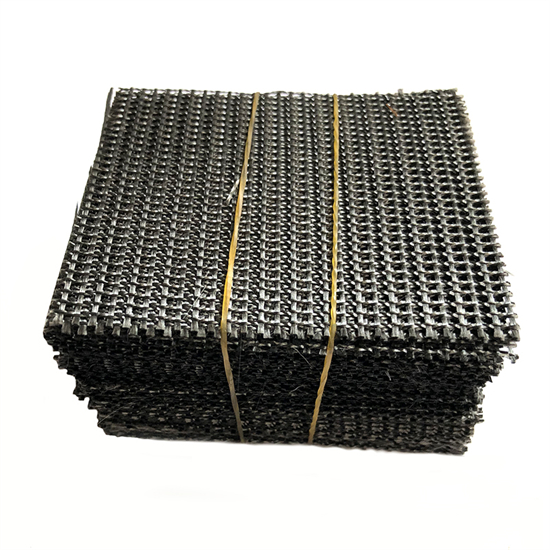

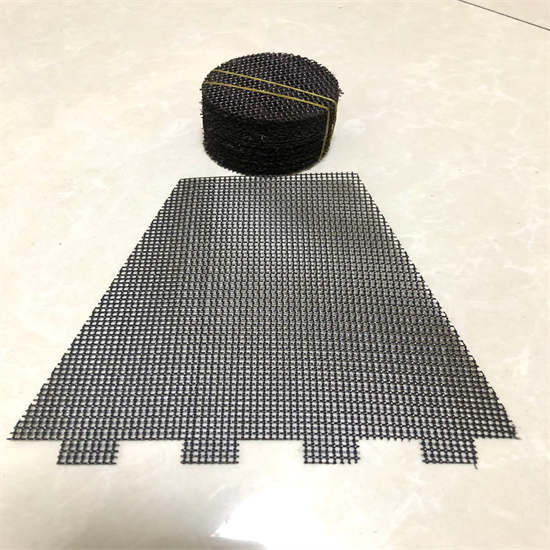

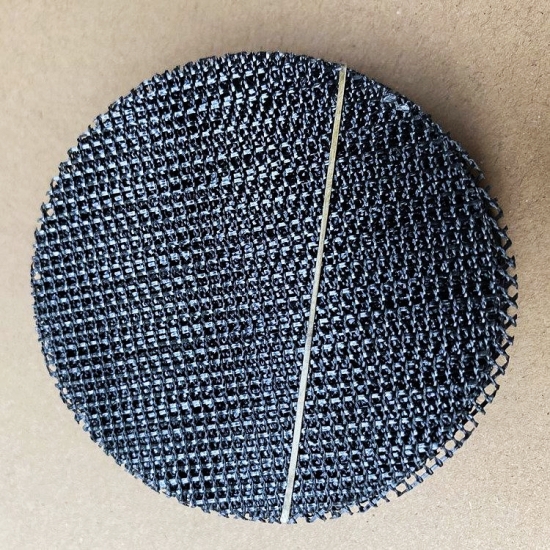

● Cutting mesh (brown, coated with resin): Square, round, fan and other heteroideus mesh cutted just according to client’s requirements. Used for filtering aluminum castings and placed in the gating system.
● Cylinder, cap and other special shapes (brown or black, coated with resin or carbonized): used for low pressure casting, such as aluminum alloy wheels, engine cylinder head and so on.
● Smokeless (black carbonization treatment): no combustion, smokeless, low gas output during the filtration process, for high quality requirements of casting production, such as aluminum alloy piston.

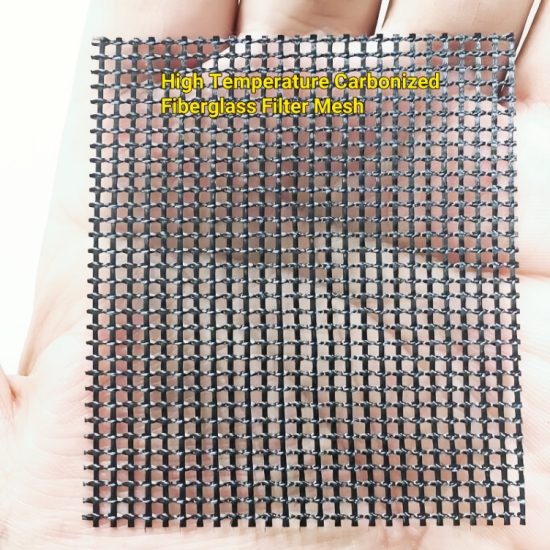

● Carbonized by High Temperature
● Coated with special resin
● Smokeless & Odorless & Flameless
● Effectively remove impurities, reduce turbulence and eliminate air bubbles from molten aluminium
● Improving the quality of castings and reducing costs
● The aluminium filtered by this mesh can be recycled again
● It is environment-friendly products
● All shapes can be customized according to clients' requirements
● Cangchen Fiberglass Fabric Filtration Mesh is available in a wide variety of shapes and shapes. You can choose from a variety of fiberglass filter mesh.
● Cangchen Fiberglass Fabric Filtration Mesh is of high quality and low price. You won't have to worry about delivery because it's fast. It has sturdy and beautiful packaging.
● Cangchen Fiberglass Fabric Filtration Mesh is experienced. We can guide you on how to choose and use it.
● In addition to fiberglass filters, Cangchen also has ceramic foam filters, and honeycomb ceramic filters to meet your various filtration options.
● Place the filter under the sprue cup;
● Placed on the parting surface under the sprue;
● Three different positions on the lap surface of the runner.

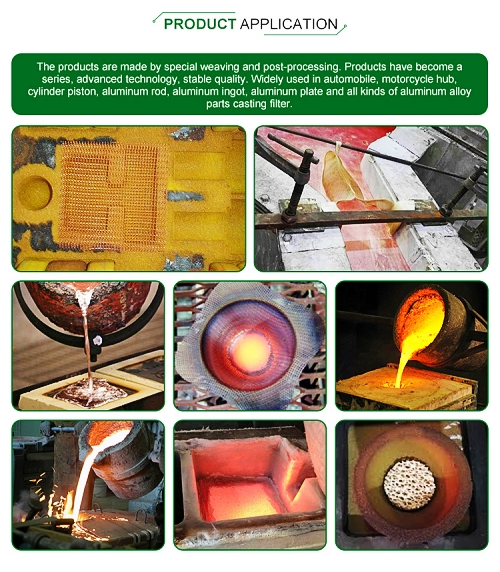

Application:
Cost effective and easy to use for aluminium filtration.
The aluminium filtered by this mesh can be recycled again.
Fiberglass fabric filtration mesh is an ideal filter material for various metal melts.
