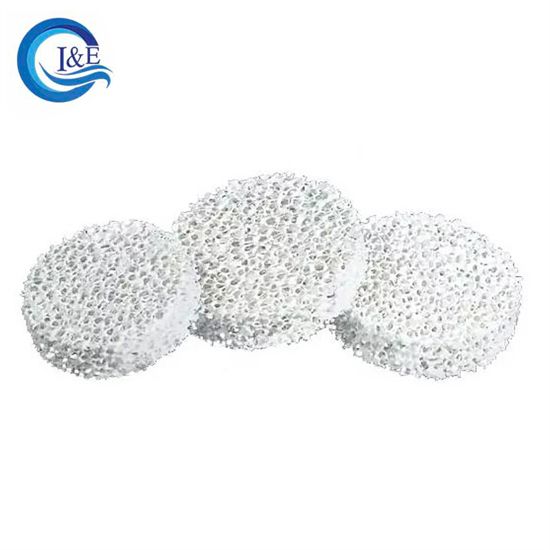

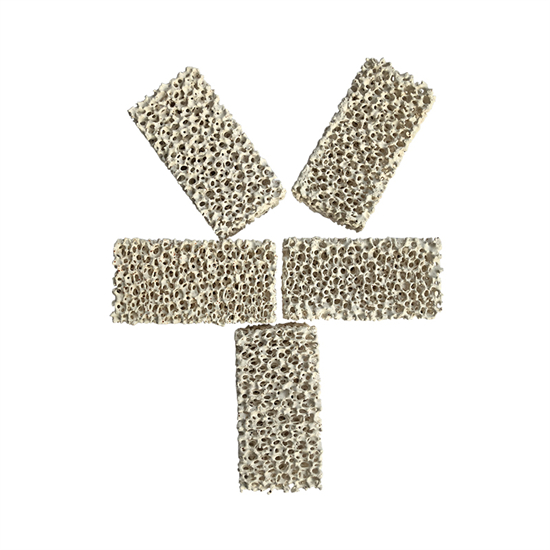

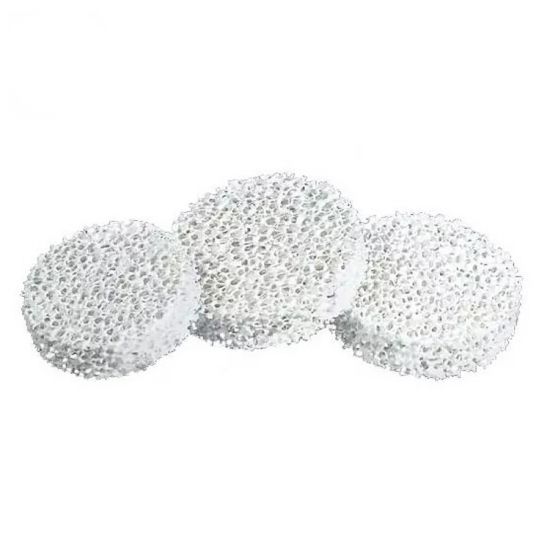

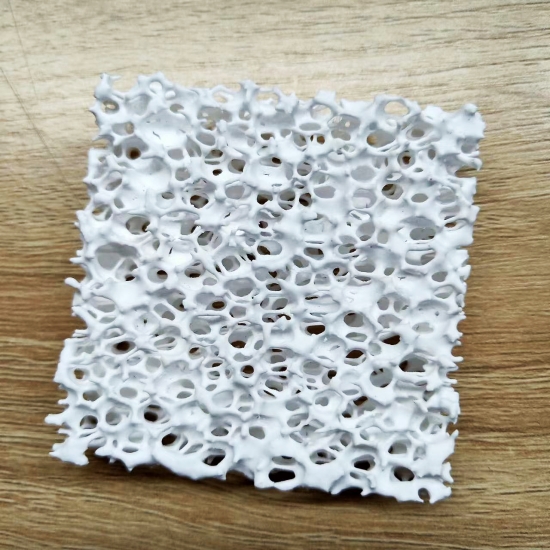

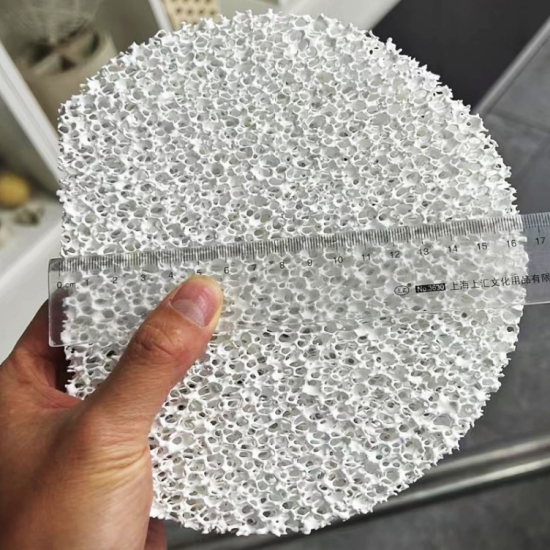

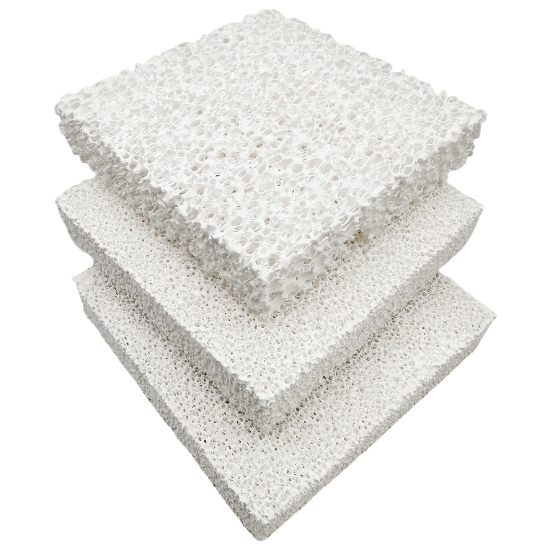

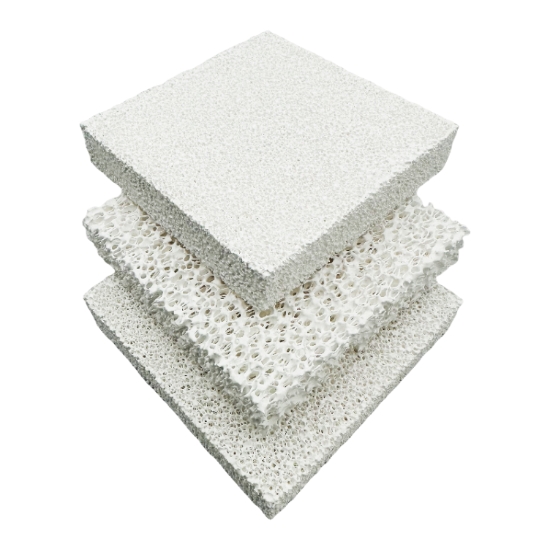

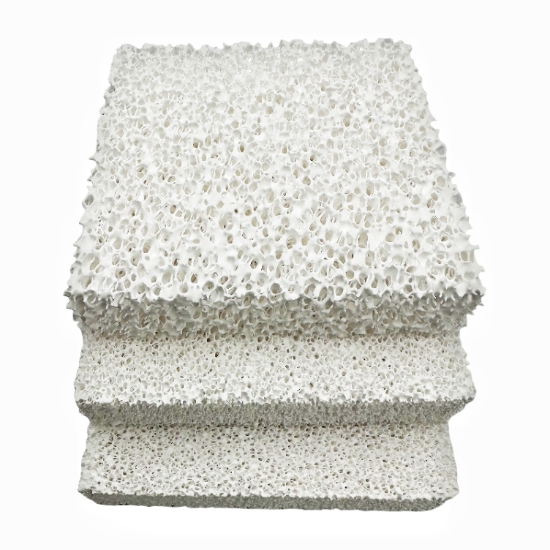

Ceramic Foam Filter
Alumina ceramic foam filters are mainly used in the purification process production of non-ferrous alloys such as aluminum and aluminum alloys.
Mainly used for the filtration of molten aluminium and alloys in foundries and cast houses.
With excellent resistance to attack and corrosion from molten aluminum, the filter can effectively remove inclusions, reduce trapped gas and provide laminar flow. Then the filtered metal is significantly cleaner.
Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to the bottom-line profit.
Parameter

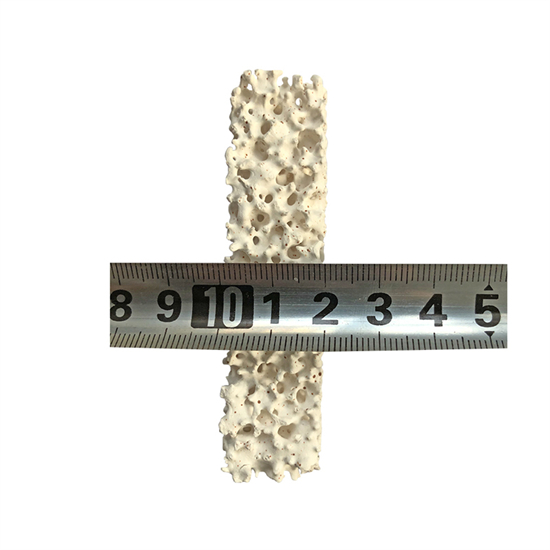

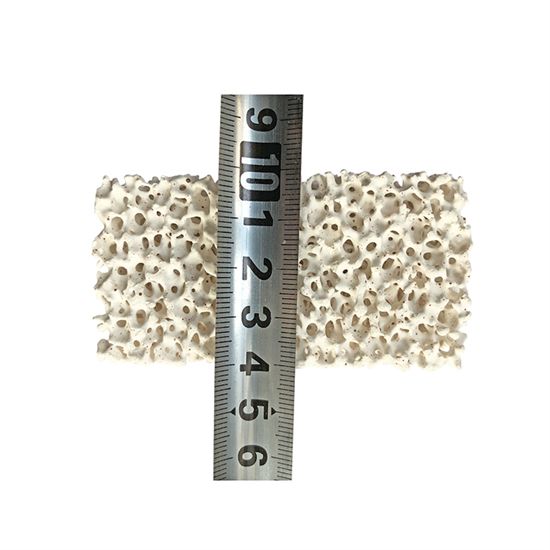

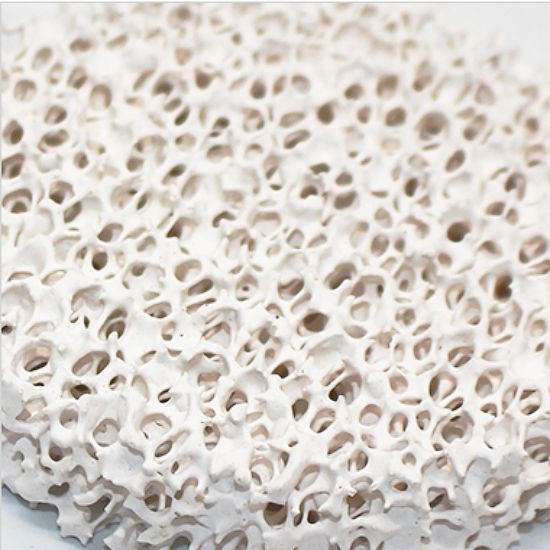

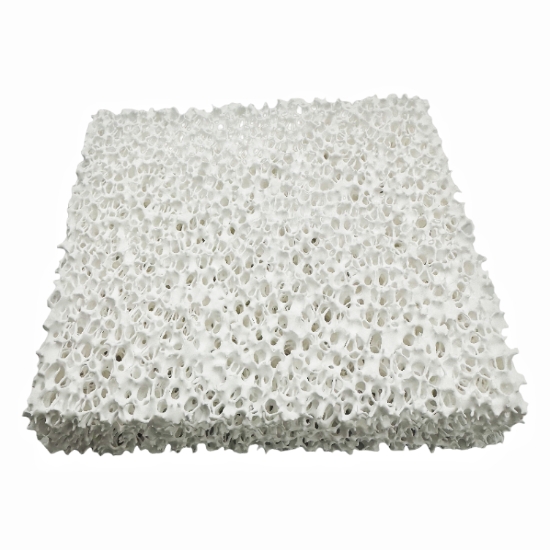

Alumina foam ceramic is a kind of foam material made from high purity alumina. The foam ceramics have the characteristics of uniform porosity, high temperature resistance, heat shock resistance, wear resistance and chemical stability.
Widely used in casting processing, water treatment, chemical industry, environmental protection and other industries. It is the ideal liquid aluminum filter, Catalyst support and good sound insulation, thermal insulation material.
They can also be used as gas-solid, liquid-solid separation medium, catalyst substrate, ceramic burner, sound absorption, environmental protection, and other fields.

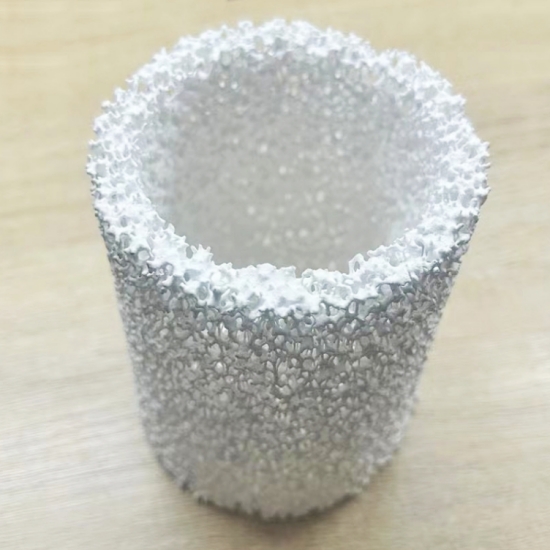

Product shapes, sizes, and voids PPI can be designed and manufactured on request.
| Type | Alumina ceramic foam filter for aluminum and alloy |
| Main material | Al2O3, SIO2 |
| Al2O3 | ≥83％ |
| Porosity | ≥85％ |

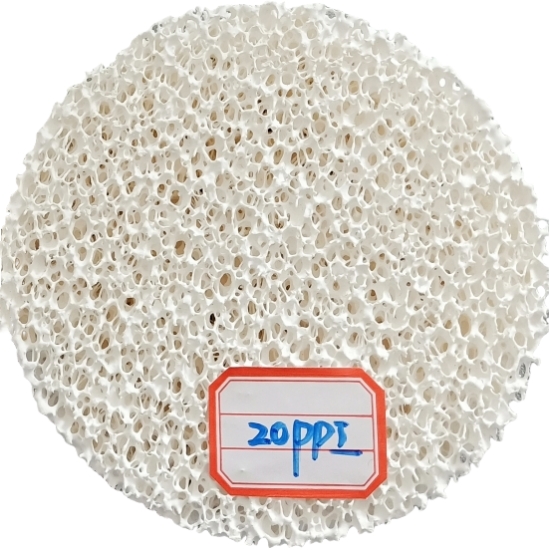

| PPI | 10/20/30/40/50/60(Customized) |
| Work Temperature | ≤1200℃ |
| Color | White |
| PPI | 10/20/30/40PPI(PPI=pores per inch) |
| Porosity | 80-90% |
| Compressive strength | ≥0.8Mpa(Room temperature) |

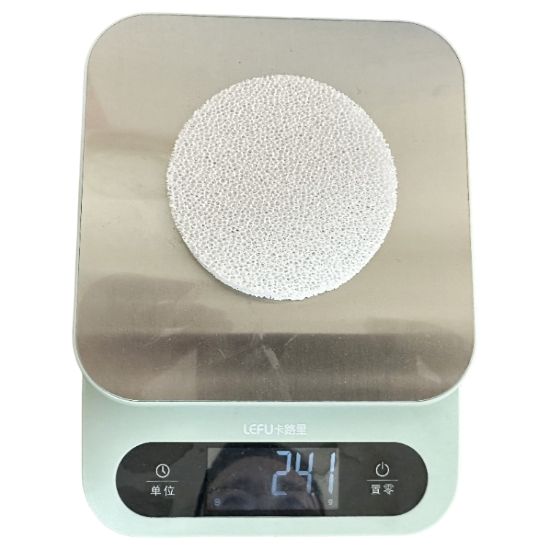

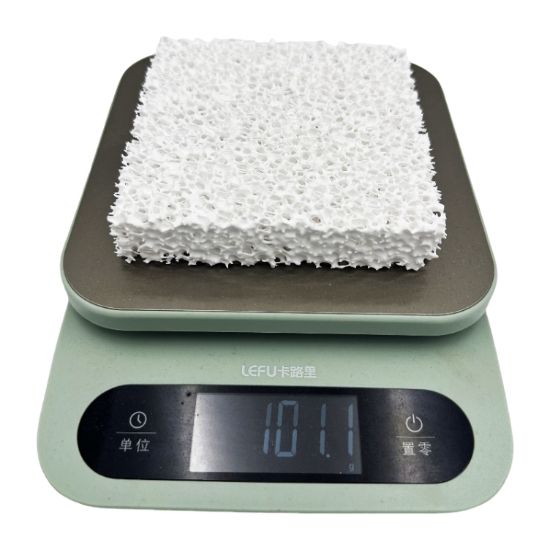

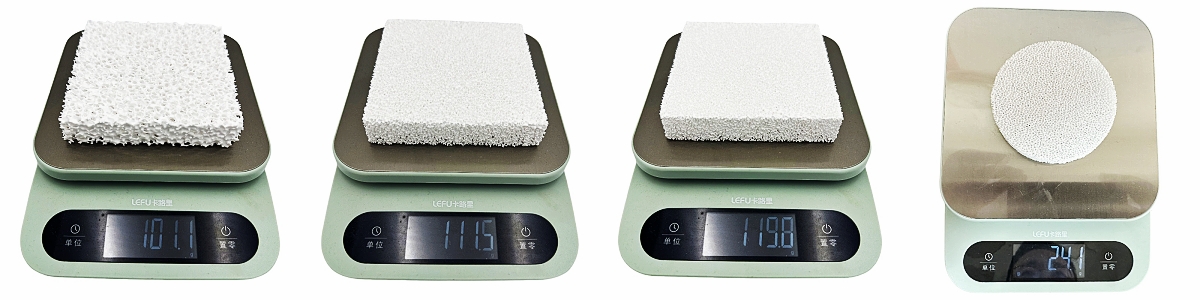

| Bulk Density | 0.4-0.5g/cm3 |
| Certificate | ISO9001:2015 |
| REACH & RoHS |
Alumina ceramic foam filters are mainly used for the filtration of molten aluminium and alloys in foundries and cast houses.
There are many reasons for aluminum pollution:
On the one hand, in the smelting process, aluminum is exposed to the furnace atmosphere in a molten or semi-molten state, easy to oxidize, easy to react with water vapor and absorb hydrogen, easy to form various forms of non-metallic slag (such as furnace lining debris, chloride, carbide in flux, etc.) and coarse metal intercompound particles and so on.
On the other hand, part of the waste that makes up the charge brings some non-aluminum impurities into circulation.
Because the waste is coming from the process waste and scrap during each process in factory and the waste outside the factory, so, the composition is complex due to different way as well as the quality is poor. These impurities often make the billet produce bubbles and inclusions, which seriously affect the purity of the metal melt, thus further affect the processing properties, mechanical properties, corrosion resistance and the appearance quality of the product.
Alumina foam ceramic filter can effectively remove all kinds of inclusions with fineness up to micron level in aluminum liquid, make aluminum liquid into a steady laminar flow, which is conducive to filling.
It has a unique mullite-corundum structure, good mechanical strength and chemical stability, excellent resistance to aluminum liquid erosion performance.
It can obtain stable filtration effect by strict control of hole size and through hole rate.
● Purify metal molten liquid
● Simplify pouring system
● Improve the casting metallographic structure
● Reduce the reoxidation defects of casting internal
● Reduce surface defects of castings after machining
● Improve casting qualification rate
For now, Hebei Cangchen is a professional manufacturer with an ISO certificate and our Alumina ceramic foam filters have passed the RoHS And Reach test and certified. The three most important key points that make our quality always the best are:
● The most advanced testing equipment and technology are adopted today in Hebei Cangchen to ensure consistent filter quality.
● There is a quality inspection team with rich experience and technology to keep the best quality in our quality control department.
● Thanks to many years of product export and feedback information from domestic and foreign customers, we have accumulated considerable experience and expertise in quality control and improvement.
If you are interested in alumina ceramic foam filter for molten aluminum and alloy, please contact us immediately.

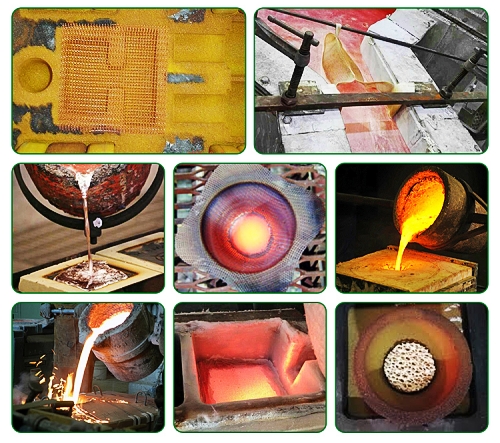

Application:
● Mainly used in the purification process of aluminum and aluminum alloy production, but also used as a variety of gas-solid, liquid-solid separation media, catalyst carrier, burner and sound absorption and environmental protection fields.
● With excellent resistance to attack and corrosion from molten aluminum, the alumina ceramic foam filter can effectively remove inclusions, reduce trapped gas and provide laminar flow,and then the filtered metal is significantly cleaner.
● Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to the bottom-line profit.
